详细信息
|
螺杆式 |
|||||||||
|
DJ |
d |
s |
& |
h |
h1 |
d1 |
&1 |
重量(kg) |
|
|
LG |
LGH |
||||||||
|
80 |
30 |
80 |
2 |
200 |
160 |
88 |
2 |
1.297 |
2.054 |
|
100 |
40 |
100 |
2 |
250 |
200 |
110 |
2 |
2.752 |
3.936 |
|
150 |
50 |
150 |
3 |
400 |
375 |
180 |
2 |
4．6 |
6．4 |
|
200 |
60 |
200 |
4 |
500 |
400 |
240 |
3 |
13.59 |
20.7 |
|
220 |
65 |
220 |
6 |
550 |
440 |
260 |
3 |
18.88 |
27.47 |
|
250 |
70 |
250 |
6 |
620 |
500 |
300 |
4 |
24.83 |
39.63 |
|
280 |
75 |
280 |
8 |
700 |
560 |
330 |
4 |
34.32 |
52.88 |
|
320 |
80 |
320 |
8 |
800 |
640 |
380 |
4 |
44.85 |
69.1 |
|
360 |
90 |
360 |
10 |
900 |
720 |
430 |
6 |
45.96 |
112 |
|
400 |
100 |
400 |
10 |
1000 |
800 |
480 |
6 |
87.6 |
144.4 |
|
450 |
110 |
450 |
12 |
1120 |
900 |
540 |
6 |
123.5 |
195.4 |
|
500 |
120 |
500 |
12 |
1250 |
1000 |
600 |
8 |
159.4 |
277.7 |
|
560 |
130 |
560 |
14 |
1400 |
1120 |
670 |
8 |
218 |
366.5 |
|
630 |
140 |
630 |
14 |
1570 |
1260 |
750 |
8 |
282.2 |
470.1 |
|
710 |
150 |
710 |
16 |
1770 |
1420 |
850 |
10 |
380.4 |
678.8 |
|
800 |
160 |
232 |
16 |
2000 |
1600 |
960 |
10 |
487.2 |
866 |
|

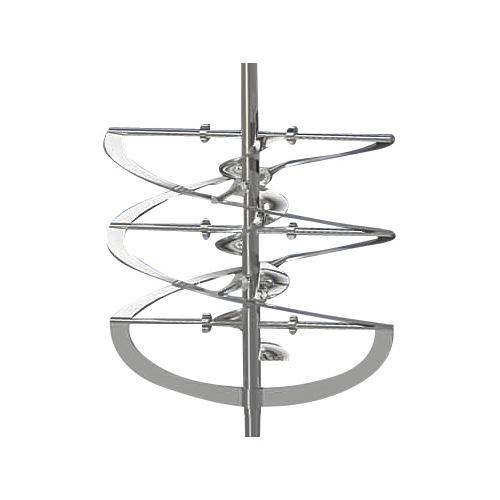

螺带螺杆式 |
|||||||||||||
|
DJ |
d |
dj |
b |
S |
S1 |
& |
&1 |
h |
Φ |
重量(kg) |
|||
|
LD |
LDG |
ZDJ |
ZLG |
||||||||||
|
285 |
40 |
80 |
25 |
285 |
80 |
4 |
2 |
285 |
14 |
5.725 |
5.839 |
4.32 |
5.14 |
|
380 |
50 |
100 |
30 |
380 |
100 |
4 |
2 |
380 |
18 |
11.06 |
11.25 |
8.56 |
10.01 |
|
470 |
60 |
125 |
35 |
470 |
125 |
6 |
3 |
470 |
18 |
19.76 |
20.23 |
15.33 |
17.53 |
|
570 |
70 |
150 |
45 |
570 |
150 |
6 |
3 |
570 |
25 |
32.18 |
32.88 |
20.05 |
27.21 |
|
660 |
80 |
180 |
50 |
660 |
180 |
8 |
4 |
660 |
32 |
50.15 |
51.53 |
38.78 |
45.67 |
|
760 |
85 |
200 |
60 |
760 |
200 |
8 |
4 |
760 |
38 |
65.63 |
67.48 |
50.67 |
58.93 |
|
850 |
90 |
230 |
70 |
850 |
230 |
10 |
6 |
850 |
45 |
88.54 |
92.42 |
67.45 |
79.54 |
|
950 |
100 |
250 |
80 |
950 |
250 |
10 |
6 |
950 |
45 |
116.8 |
121.4 |
90 |
98.89 |
|
1140 |
110 |
300 |
95 |
1140 |
300 |
12 |
8 |
1140 |
57 |
175.9 |
185.1 |
135.02 |
148.3 |
|
1340 |
120 |
350 |
110 |
1340 |
350 |
12 |
8 |
1340 |
57 |
238.7 |
252.6 |
185.79 |
212 |
|
1530 |
130 |
400 |
125 |
1530 |
400 |
14 |
10 |
1530 |
76 |
343 |
366.6 |
263 |
306.4 |
|
1730 |
140 |
450 |
140 |
1730 |
450 |
14 |
10 |
1730 |
76 |
437.8 |
468.8 |
338.92 |
405.2 |
|
1920 |
150 |
500 |
160 |
1920 |
500 |
16 |
12 |
1920 |
89 |
586 |
633.1 |
449.72 |
541.9 |
|
2120 |
160 |
550 |
175 |
2120 |
550 |
16 |
12 |
2120 |
89 |
713.9 |
772.2 |
533.4 |
640.9 |
|
2320 |
170 |
600 |
190 |
2320 |
600 |
18 |
14 |
2320 |
108 |
916.8 |
999.5 |
706.44 |
827.5 |
|
2520 |
180 |
650 |
200 |
2520 |
650 |
20 |
14 |
2520 |
108 |
1127 |
1226 |
864.7 |
955.9 |
